GPU Video Wall Controller
GPU Processing | 4K UHD Support | 24×7 Reliability
INFINITA
INFINITA is a GPU-based video wall controller engineered for highway traffic management centers, smart city command centers, and mission-critical control rooms requiring professional-grade video processing. Powered by Intel Core i7 10th Gen (≥3.4GHz) with 16GB DDR4 RAM and workstation-grade GPU delivering ≥4 outputs, it drives up to 32,768×32,768 pixel desktops with multi-window layouts from 2×2 to 3×3 and custom configurations. Supporting diverse inputs including DVI, DisplayPort, HDMI, VGA, Composite, RGB Analog, and IP Streaming (RTSP, MPEG-2/4, H.265, MJPEG), INFINITA processes UHD 4K (3840×2160) and Full HD (1920×1080) outputs enabling independent window resizing, positioning, and layering across connected displays.
The redundant architecture features dual 230V AC PSU, RAID-1 hot-swap SSD storage, and GPU failover ensuring uninterrupted operation across 24×7 traffic monitoring applications. With Windows 10/Linux OS, GUI-based management, auto-calibration, 2× Gigabit Ethernet, and API integration for remote access, INFINITA delivers synchronized multi-display control for RS750G LCD screens, TraffiVue LED video walls, and mixed display environments across control room installations.
Product Highlights
4K UHD Multi-Output
Full ecosystem interoperability with IHMCL/NPCI NETC FASTag infrastructure ensures nationwide toll compatibility. WPC ETA approval for India guarantees regulatory compliance and seamless deployment across toll plazas and parking facilities.
Multi-Source Input
Adjustable RF power up to 33 dBm with 9 dBi circular polarized antenna delivers flexible 0-20m read range. Superior anti-collision processing handles over 350 tags per second enabling high-speed multi-lane toll operations without bottlenecks.
Hot Backup Redundancy
GPIO relay outputs provide direct connection to barrier gate controllers for automated lane access control. Event-triggered relay activation enables instant barrier opening upon valid FASTag detection with 6-10m lane identification range.
Auto-Calibration & Sync
Software development kits available in C, C#/.NET, and Java enable rapid integration with parking management and ETC systems. Built-in status buzzer and real-time event logs provide operational feedback for system monitoring.
Key Specifications
| Parameter | Specification |
|---|---|
| CPU | Intel Core i7 - 10th Gen or higher, ≥3.4 GHz (Quad Core+) |
| RAM | 16 GB DDR4 (expandable to 32 GB) |
| Storage | 2× 500 GB SSD (RAID-1, hot-swap) |
| GPU | Workstation GPU with ≥4 outputs (DP 2560×1600@60Hz, DVI 1920×1200 @ 60Hz) |
| Desktop Resolution | Up to 32,768×32,768 pixels |
| Video Inputs | DVI, DisplayPort, HDMI, VGA, Composite, RGB Analog, IP Streaming |
| IP Streaming Formats | RTSP, MPEG-2/4, H.265, MJPEG, V2D |
| Wireless Input | Via external device |
| Video Outputs | ≥4 multichannel outputs |
| Output Resolutions | UHD 4K (3840×2160), Full HD (1920×1080), 1024×768 |
| Multi-Window Layouts | 2×2, 3×3, custom configurations |
| Window Control | Independent resizing, positioning, layering |
System & Networking
| Parameter | Specification |
|---|---|
| Operating System | Windows 10 / Linux (64-bit) |
| Management Interface | GUI-based with remote access via web & API |
| Networking | 2× Gigabit Ethernet ports |
| System Features | Auto calibration, display synchronization, hot backup |
| Redundancy | Dual redundant PSU, RAID-1 SSD, GPU failover |
| Form Factor | 19" rack-mountable (2U/4U) |
| Power Supply | Dual redundant 230V AC, 50/60 Hz |
| Power Consumption | ≤ 300 W |
| Operating Temperature | 0-45°C |
| Humidity | 20-80% non-condensing |
Reliability & Support
| Parameter | Specification |
|---|---|
| Design Life | 24×7 continuous operation |
| MTBF | ≥ 100,000 hours |
| Warranty | Standard manufacturer warranty |
| Support | Local support in India, 24×7 service availability |
Compatible Video Wall Displays

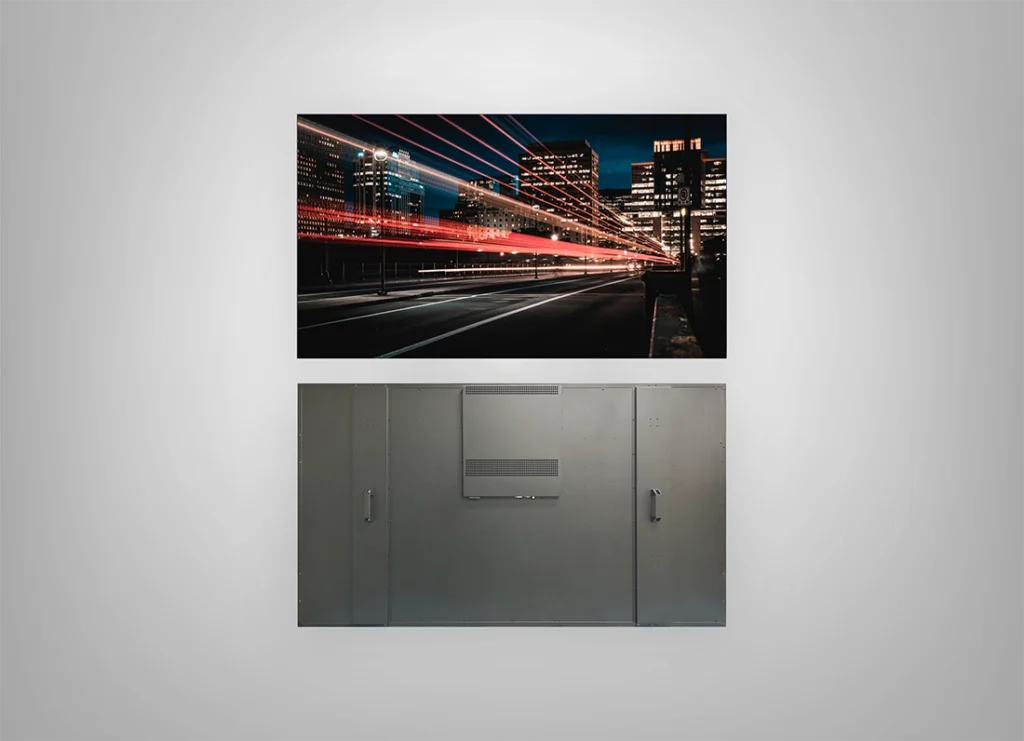

RS750G

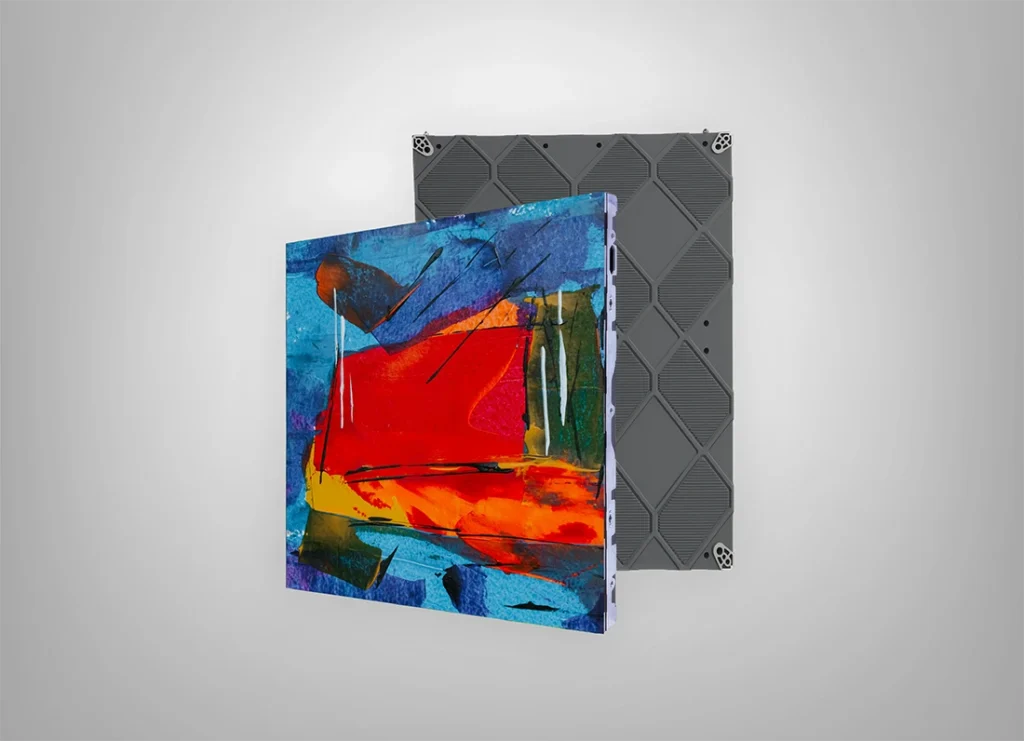

TraffiVue XN COB P0.7

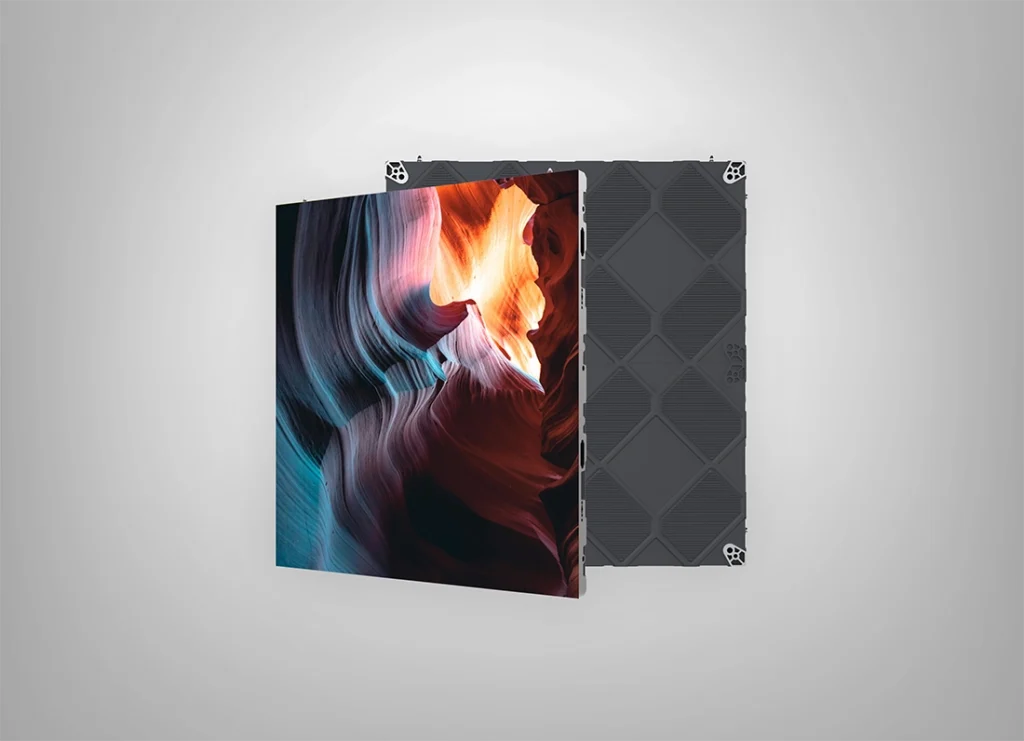

TraffiVue XN COB P0.9

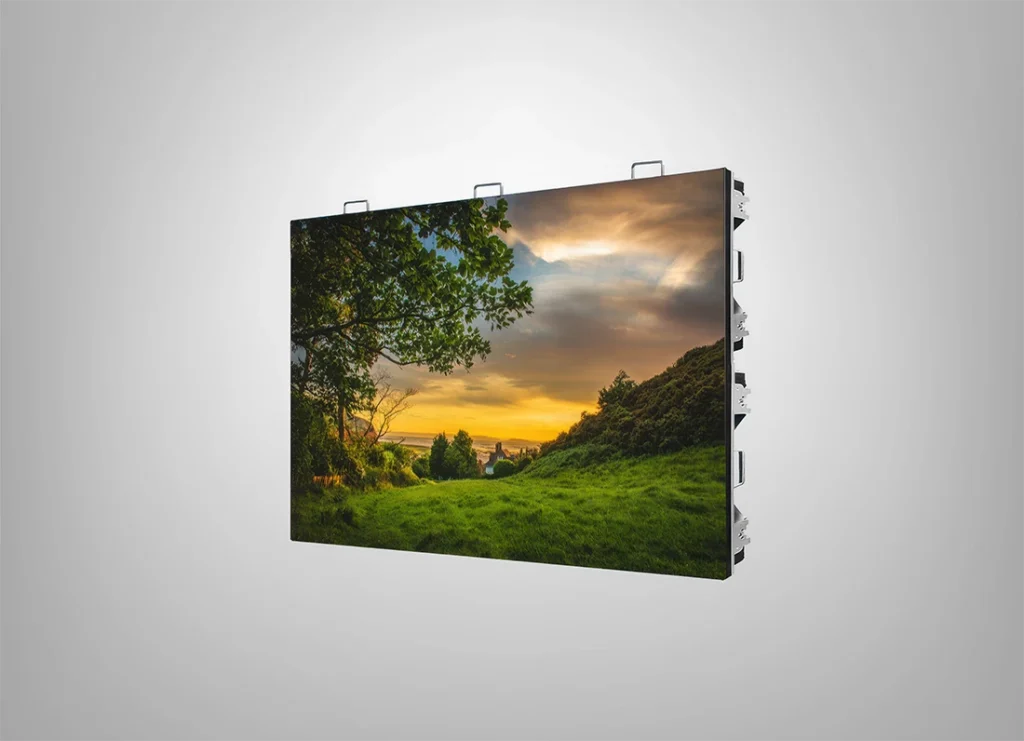

TraffiVue TN SMD
Applications and Deployment
Professional video wall control for traffic management, smart cities, and mission-critical operations.

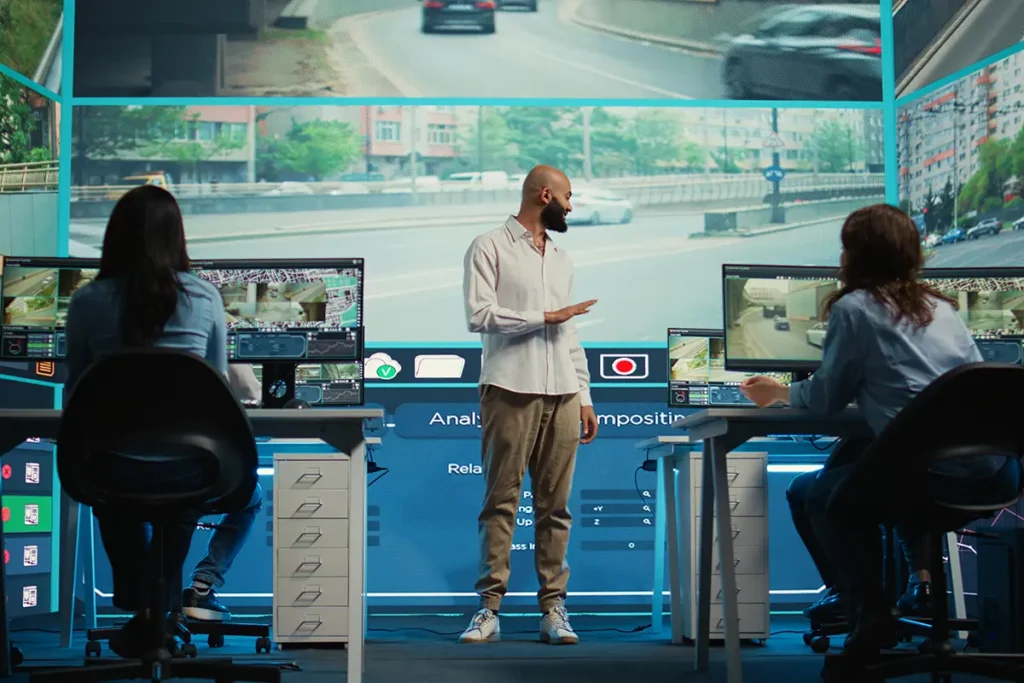

Highway Traffic Management Centers
Processes multiple CCTV camera feeds from expressway corridors alongside traffic analytics dashboards across large video walls. GPU processing enables smooth multi-source display with real-time video decoding while redundant architecture ensures uninterrupted monitoring during critical incidents.

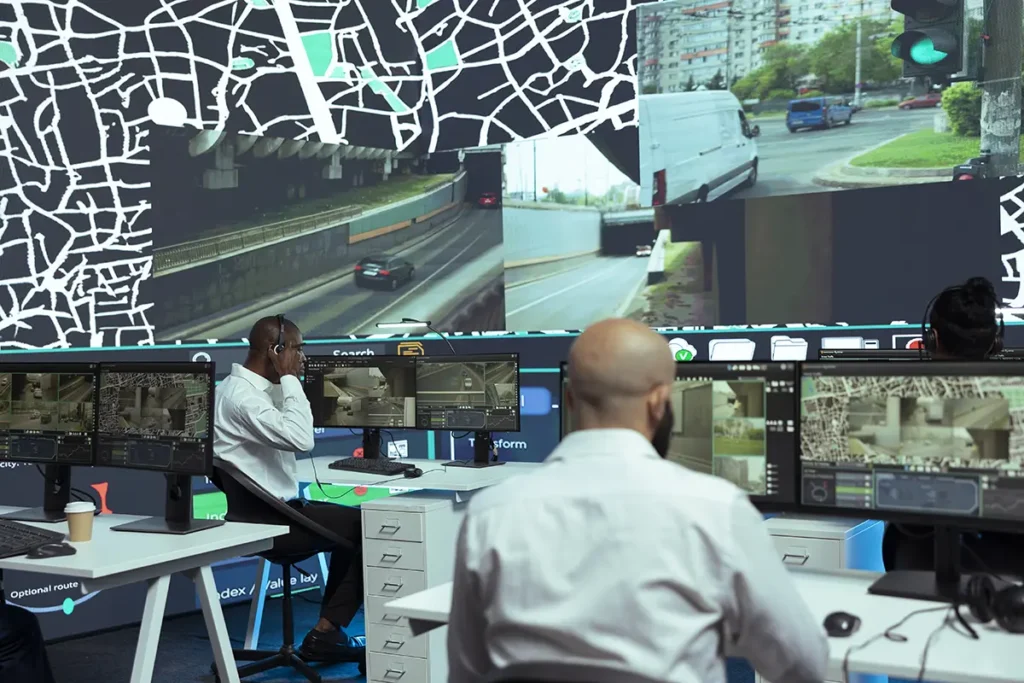

Smart City Command & Control Rooms
Manages diverse input sources including urban traffic cameras, ANPR feeds, emergency response systems, and city analytics across synchronized LED and LCD video walls. API integration enables custom control interfaces while Windows/Linux compatibility supports diverse software ecosystems.

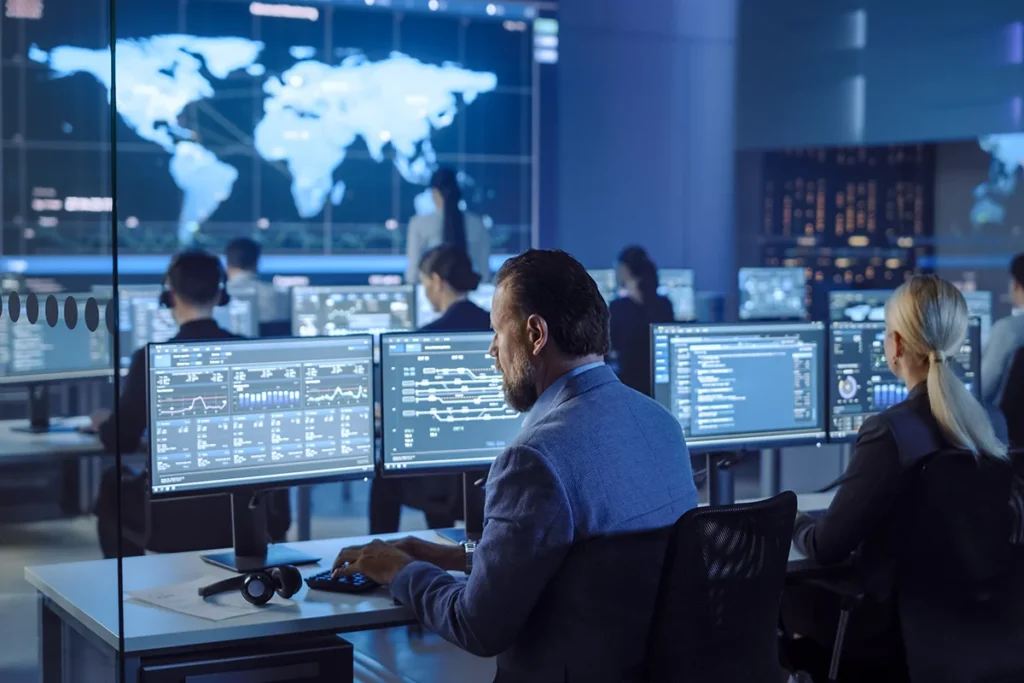

Airport & Railway Operations Centers
Displays passenger flow monitoring, security camera arrays, flight/train status boards, and operational dashboards across multi-screen configurations. Auto-calibration maintains color consistency across mixed display types while layering capability enables priority content highlighting.
Why Choose INFINITA?
Enterprise-grade GPU processing backed by redundant architecture and proven 24×7 reliability.
Professional GPU Architecture
Workstation-grade GPU with ≥4 outputs and desktop capability up to 32,768×32,768 pixels supports expansive video wall configurations. Independent window control enables flexible content layouts adapting to changing operational requirements without system reconfiguration.
Comprehensive Input Flexibility
Supports traditional video sources (DVI, HDMI, VGA, Composite) alongside modern IP streaming (RTSP, H.265, MPEG-4) eliminating protocol conversion requirements. Unified processing of diverse camera types, analytics dashboards, and legacy systems simplifies control room integration.
Triple Redundancy Protection
Dual redundant PSU prevents single power supply failures while RAID-1 hot-swap SSD storage protects against data loss during drive failures. GPU failover architecture maintains video wall operation during graphics card issues ensuring continuous monitoring capability.
24×7 Operational Design
≥ 100,000 hour MTBF rating with 0-45°C operating range supports continuous deployment in climatically diverse Indian control centers. Industrial-grade components selected for extended lifecycle reducing replacement frequency across multi-year deployments.
GUI Management Simplicity
Intuitive graphical interface eliminates command-line complexity enabling rapid window configuration and layout adjustments by control room operators. Auto-calibration and synchronization features reduce commissioning time while maintaining consistent visualization across displays.
API Integration Ready
Web-based remote access and API interfaces enable custom control applications and third-party system integration. Dual Gigabit Ethernet supports network redundancy while enabling simultaneous management and data connections.
Power Your Video Wall Command Center
GPU-based controller with 4K UHD support, redundant architecture, and 24×7 reliability for mission-critical traffic management operations.
