Vehicle Actuated Speed Display
Real-Time Speed Enforcement | RGB Color Coding | <10ms Response
SpeedVue
SpeedVue is a high-performance Vehicle Actuated Speed Display (VASD) engineered for speed deterrence and traffic calming on highways and urban roads. Integrating seamlessly with RST’s RS4D080 radar system, it displays real-time vehicle speeds with intuitive RGB color coding—green for within limits, orange for at limit, and red for exceeding. With <10ms response time and >7500 mcd brightness, the display ensures instant feedback visibility across 120° viewing angles in all lighting conditions.
Available in P6 and P10 LED configurations with customizable sizes from 768×768mm to 1000×1000mm, SpeedVue supports remote control via Ethernet TCP/IP from ATMS control centers while automatically relaying speed data for traffic analytics. Auto-dimming capability reduces power consumption at night while maintaining readability across 24×7 highway operations for effective speed management and driver behavior modification.
Product Highlights
<10ms Response Time
Ultra-fast <10ms response delivers instantaneous speed display as vehicles approach ensuring real-time feedback without lag. Immediate visual response reinforces speed awareness creating effective behavioral modification for drivers approaching speed-restricted zones.
RGB Color-Coded Display
Intelligent color coding displays green for within speed limit, orange for at limit, and red for exceeding limit. Intuitive visual language eliminates language barriers while creating universal driver comprehension across diverse traffic demographics.
Radar-Integrated Intelligence
Operates seamlessly with RS4D080 radar system for accurate vehicle speed detection and automated display triggering. Plug-and-play integration eliminates complex configuration while relaying real-time speed data to ATMS control centers for traffic analytics.
High Brightness, Auto-Dimming
Superior >7500 mcd brightness ensures daytime visibility under direct sunlight with 120° viewing angles for approaching traffic. Automatic brightness adjustment at night prevents driver distraction while reducing power consumption across 24×7 operations.
Key Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | P6 / P10 Options |
| Display Type | RGB Color (Green/Orange/Red) |
| Brightness | >7500 mcd |
| Brightness Control | Auto Dimming |
| Viewing Angle (Horizontal) | 120 degrees |
| Viewing Angle (Vertical) | 120 degrees |
| Operating Temperature | -10°C to +55°C |
| Response Time | <10 ms |
| Display Size Options | 768×768 mm, 1000×1000 mm |
| Custom Sizes | Available on request |
| Communication | Ethernet TCP/IP |
| Radar Integration | RS4D080 compatible |
| Data Relay | ATMS Control Centre |
| Input Voltage | AC 110/220 V, 50/60 Hz |
| Material | Aluminum powder coated |
Operating Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +55°C |
| Humidity Range | 10-95% RH non-condensing |
| IP Protection (Front) | IP67 (fully waterproof) |
| IP Protection (Rear) | IP55 (ventilated) |
| UV Resistance | LED UV resistant coating |
Applications and Deployment
Speed enforcement and traffic calming across highways, school zones, and urban corridors.

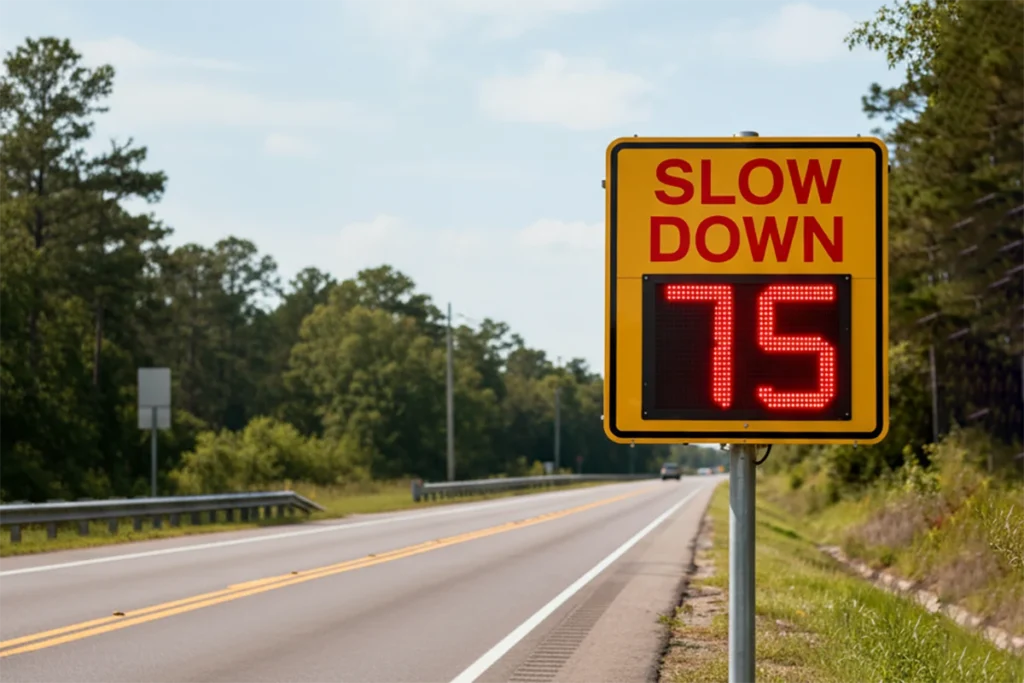

Highway Speed Management Zones
Displays real-time vehicle speeds with color-coded warnings on highway approach lanes and speed transition zones. Encourages voluntary speed reduction before enforcement points reducing accidents and improving traffic flow consistency on high-speed corridors.

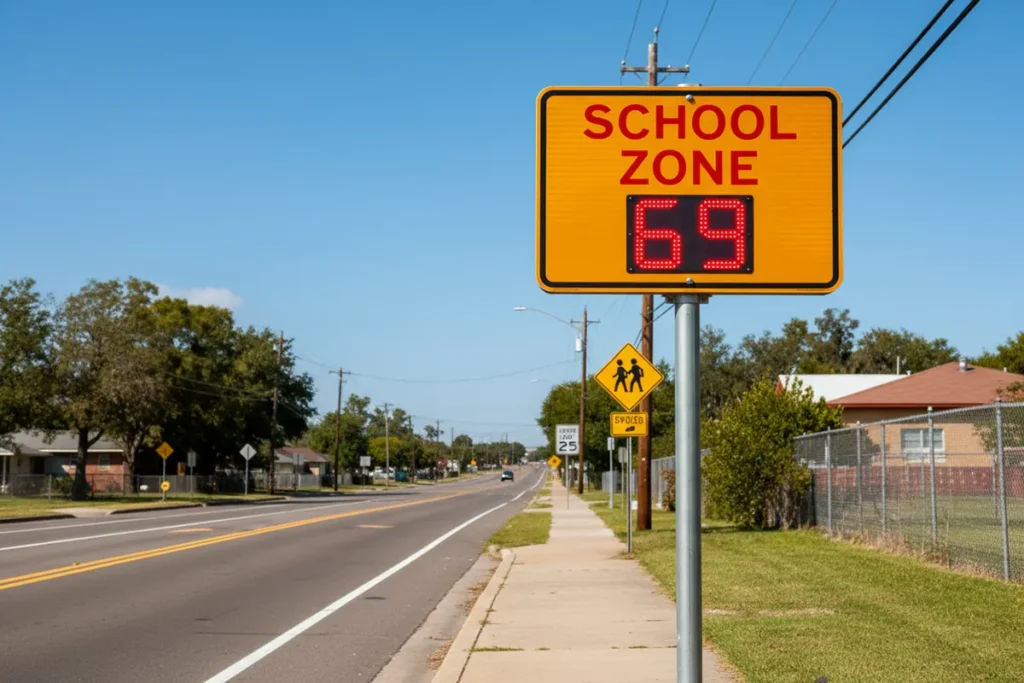

School Zones & Residential Areas
Provides immediate speed feedback in sensitive zones where pedestrian safety is critical with clear visual deterrence. Auto-dimming capability prevents light pollution in residential neighborhoods while maintaining effective speed enforcement during peak hours.

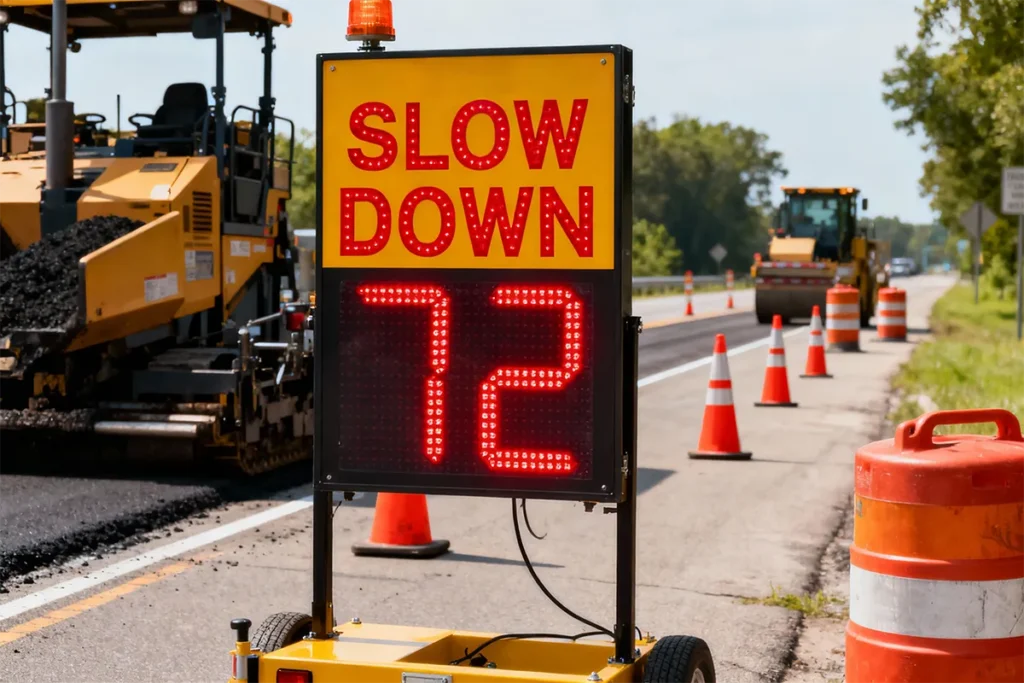

Work Zone Safety & Construction Areas
Alerts drivers to reduced speed limits in temporary construction zones with enhanced visibility for approaching heavy vehicles. Remote control via Ethernet enables instant speed limit adjustments coordinated with changing work zone configurations.
Why Choose SpeedVue?
Proven speed deterrence technology backed by seamless radar integration and field-tested reliability.
Instant Behavioral Feedback
<10ms response time creates immediate speed-awareness connection eliminating delay between vehicle detection and display update. Real-time feedback reinforces speed compliance improving voluntary adherence without requiring enforcement personnel.
Universal Visual Language
RGB color coding (green/orange/red) transcends language barriers providing intuitive speed compliance status across diverse driver populations. Eliminates confusion from numeric-only displays while creating visceral compliance motivation through color psychology.
Seamless Radar Integration
Plug-and-play compatibility with RS4D080 4D speed radar eliminates complex integration programming and commissioning delays. Factory-configured communication ensures reliable operation from day one without requiring specialized radar configuration expertise.
Traffic Analytics Capability
Automatic data relay to ATMS control centers enables comprehensive speed compliance analysis and traffic pattern monitoring. Historical speed data supports evidence-based speed limit decisions and enforcement resource allocation optimization.
Auto-Dimming Power Efficiency
Intelligent brightness adjustment reduces power consumption during night hours extending solar power system runtime in off-grid installations. Prevents driver distraction from excessive brightness while maintaining visibility ensuring safety without energy waste.
Customizable Deployment Options
Available in P6 and P10 LED configurations with standard and custom sizes supporting diverse road geometries and viewing distances. Flexible sizing enables optimal visibility matching specific site requirements from urban intersections to highway approaches.
Curb Speeding with Real-Time Speed Displays
Instant <10ms response with RGB color coding and seamless radar integration for effective speed management.
