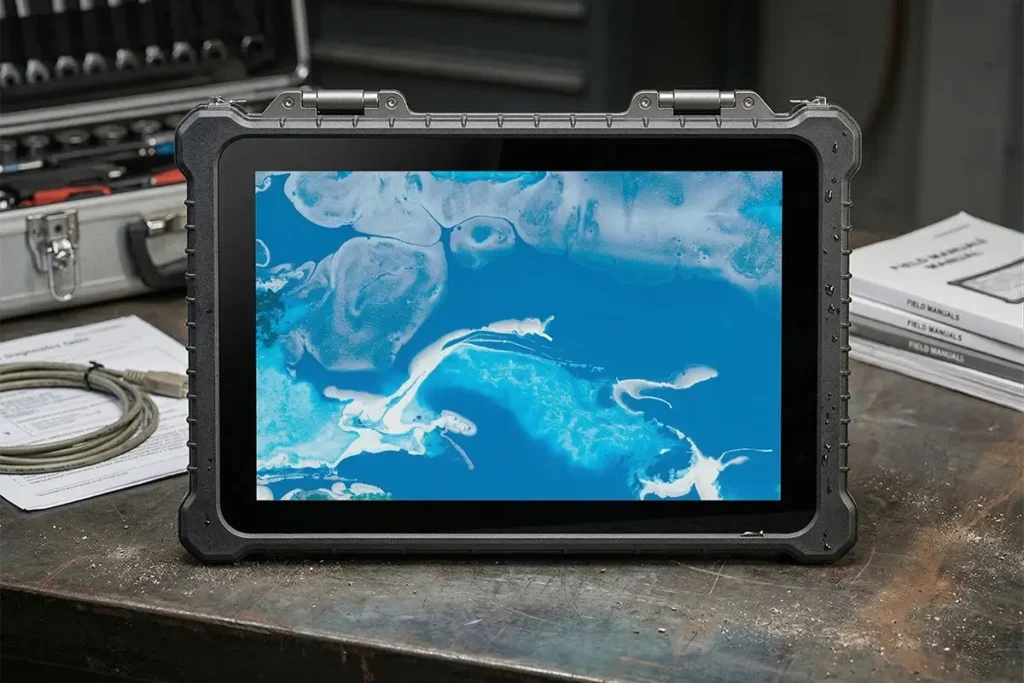

Rakshak Tab - Rugged Android Tablet
10.1‑inch IPS Display | IP65 Protection | MIL‑STD‑810G Compliance
Rakshak Tab
Rakshak Tab is a 10.1‑inch rugged Android tablet engineered for demanding industrial and field operations. It combines an IP65 waterproof and dustproof enclosure with MIL‑STD‑810G shock and drop resistance to withstand harsh environments and intensive daily use.
Powered by the MT6789 processor with 2×A76 2.2 GHz and 6×A55 2.0 GHz cores, 8 GB LPDDR4 RAM, and Android 12 (GMS), it delivers smooth performance for modern enterprise applications. The IPS display offers 800×1280 resolution, 16:10 aspect ratio, and 700 cd/㎡ brightness with a 10‑point capacitive, 6H anti‑scratch glass touch panel.
With an 8000 mAh Li‑Po battery, dual‑band Wi‑Fi, Bluetooth 5.2, 2G/3G/4G cellular connectivity, and GPS + Glonass positioning, Rakshak Tab is built for uninterrupted data capture and communication in the field.
Product Highlights
Rugged Industrial Design
10.1‑inch rugged tablet engineered with PC+ABS+TPU housing for superior impact resistance. IP65 waterproof and dustproof rating protects against harsh elements. MIL‑STD‑810G certified for shock and drop resistance in demanding field conditions.
Certified for Critical Use
MIL‑STD 810G certified with CCC, FCC, IP65 Standard, and CE certifications ensuring global compliance. Ready for regulated industrial deployments and validated for safety‑critical enterprise scenarios.
High‑Brightness IPS Display
10.1‑inch IPS display with 16:10 aspect ratio optimized for productivity. 800×1280 resolution delivers sharp, clear visuals. 700 cd/㎡ brightness ensures readability even in direct sunlight.
Long-Lasting Battery Life
8000 mAh Li‑Po battery with 3.7 V high-capacity design for extended field operations. 9 hours continuous 1080P HD video at 50% volume/brightness. Supports full work shifts without recharging.
Rugged Industrial Android Tablet
Rakshak Tab is designed as a rugged industrial Android tablet for use in environments where conventional consumer devices fail. Its enclosure is rated IP65 for water and dust ingress protection and tested to MIL‑STD‑810G for shock and drop resistance.
The device operates across a wide temperature range from −20 °C to 60 °C and can be stored between −30 °C and 70 °C with up to 95% non‑condensing humidity, ensuring reliability in outdoor, industrial, and field deployments.
- Product form: 10.1‑inch rugged tablet.
- Material: PC+ABS+TPU.
- Dimensions: 275.7 × 187.5 × 24.5 mm.
- Approximate weight: 1000 g.
- Product color: Black, batch color optional.
Built‑in High Definition Camera
Rakshak Tab includes a rear 13 MP camera with LED flash that can capture photos, videos, and documents instantly for field records and reporting. The front 5 MP camera supports selfies or video communication, enabling remote collaboration and video calls from the field.
- Rear camera: 13.0 MP with LED flash.
- Front camera: 5.0 MP.
- Suitable for document capture, photos, videos, and video communication.
Fingerprint Recognition
The Rakshak Tab supports an integrated fingerprint recognition module to enhance device security and user convenience. The module offers high resolution, high anti‑counterfeiting capability, and sensitive recognition for fast authentication.
- Fingerprint recognition module support.
- High‑resolution, anti‑counterfeiting sensing.
- Sensitive fingerprint recognition.
Long Lasting Battery
The Rakshak rugged Android tablet is equipped with an 8000 mAH Lithium‑polymer (Li‑Po) battery designed for excellent endurance and long‑lasting operation. Under typical test conditions of 50% volume, 50% brightness, and 1080P HD video playback, the datasheet indicates around 9 hours of operation.
- Battery type: Built‑in Li‑polymer (Li‑Po) battery.
- Capacity: 8000 mAh at 3.7 V.
- Typical runtime: 9 hours.
Device & Performance
| Parameter | Specification |
|---|---|
| CPU | MT6789, 2×A76 2.2 GHz + 6×A55 2.0 GHz |
| GPU | ARM G57 MC2 |
| Memory | 8 GB LPDDR4 RAM |
| Operating System | Android 12 GMS |
Display & Touch
| Parameter | Specification |
|---|---|
| Display type | IPS |
| Display size | 10.1‑inch, 16:10 |
| Resolution | 800×1280 |
| Brightness | 700 cd/㎡ |
| Touch Panel | 10‑point capacitive, G+G, hardness 6H, anti‑scratch |
Camera & Audio
| Parameter | Specification |
|---|---|
| Front camera | 5.0 MP |
| Rear camera | 13.0 MP |
| Rear LED flash | Supported |
| Speaker | 8 Ω / 1 W waterproof box speaker ×1 |
| Microphone | Sensitivity −42 dB, output impedance 2.2 kΩ |
Buttons & Sensors
| Parameter | Specification |
|---|---|
| Buttons | Power ×1, Volume + ×1, Volume − ×1, F customizable key ×1 (Barcode Scanning) |
| Sensors | G‑Sensor, Geomagnetic sensor (compass), Gyro Sensor |
Battery & Power
| Parameter | Specification |
|---|---|
| Battery | Built‑in Li‑polymer (Li‑Po) battery 8000 mAh / 3.7 V |
| Rated operation | 9 hours at 50% volume, 50% brightness, 1080P HD video display by default |
| Adapter | AC 100 V–240 V, 50/60 Hz input; DC 5 V 3 A output |
| Charging interface | Type‑C cable |
Wireless Connectivity
| Parameter | Specification |
|---|---|
| Wi-Fi | 802.11 b/g/n/a/ac, 2.4 GHz + 5 GHz dual‑band Wi‑Fi |
| Bluetooth | BT 5.2 (BLE), class 1, transmission distance 10 m |
Cellular Connectivity
| Parameter | Specification |
|---|---|
| 2G (GSM) | bands 2 + 3 + 5 + 8 |
| 3G (WCDMA) | bands 1 + 2 + 5 + 8 |
| 4G (TDD) | bands 38 + 39 + 40 + 41N (2535 MHz–2655 MHz) |
| 4G (FDD) | bands 1 + 2 + 3 + 4 + 5 + 7 + 8 + 17 + 20 + 28a + 28b |
Positioning
| Parameter | Specification |
|---|---|
| GNSS support | GPS + Glonass |
| Capture sensitivity | −140 dBm |
| Cold start time | < 50 seconds |
| Hot start time | < 5 seconds |
| GPS frequency | 1575.42 MHz |
| Glonass frequency | 1602 MHz |
| Beidou frequency | B1 1.561 GHz |
I/O Interfaces & Expansion
| Parameter | Specification |
|---|---|
| USB-A | Standard USB 2.0 ×1 |
| USB-C | USB Type‑C ×1 (data & charging) |
| Audio Jack | ∮3.5 mm standard earjack ×1 |
| SIM Slot | SIM card slot ×1 |
| Memory Card | TF card slot ×1, max 512 GB |
| Expansion | 12‑pin Pogo Pin ×1 |
Rugged Features & Environment
| Parameter | Specification |
|---|---|
| Working temperature | −20 °C to 60 °C |
| Storage temperature | −30 °C to 70 °C |
| Humidity | 95% non‑condensing |
| Compliance | IP65 and MIL‑STD‑810G |
Applications and Deployment
Rakshak Tab thrives in extreme conditions: IP65-rated for dust/water, MIL-STD-810G for shocks/drops/vibrations (-20°C to 60°C).
Manufacturing &
Logistics
Barcode scanning, inventory tracking, real-time data entry.
Construction & Field Service
Site inspections, GPS navigation, photo/video documentation.
Oil/Gas &
Mining
Asset management in dust/humidity, rugged docking via pogo pins.
Why Choose Rakshak Tab?
Our rugged Android tablet provides unmatched rugged reliability for Indian industries.
Extreme Durability
Survives drops, harsh weather—built to last.
All-Day Power
8000mAh battery, octa-core CPU, 8GB RAM for non-stop work.
Secure & Connected
Fingerprint ID, 4G/WiFi 6, GPS—enterprise-ready.
Certified Excellence
CE/FCC/IP65/MIL-STD-810G—zero downtime, total confidence.
Deploy Rugged Reliability on Every Route
Rakshak Tab: IP65/MIL-STD-810G certified, 700cd/m² sunlight-readable for real-time traffic & field ops.
